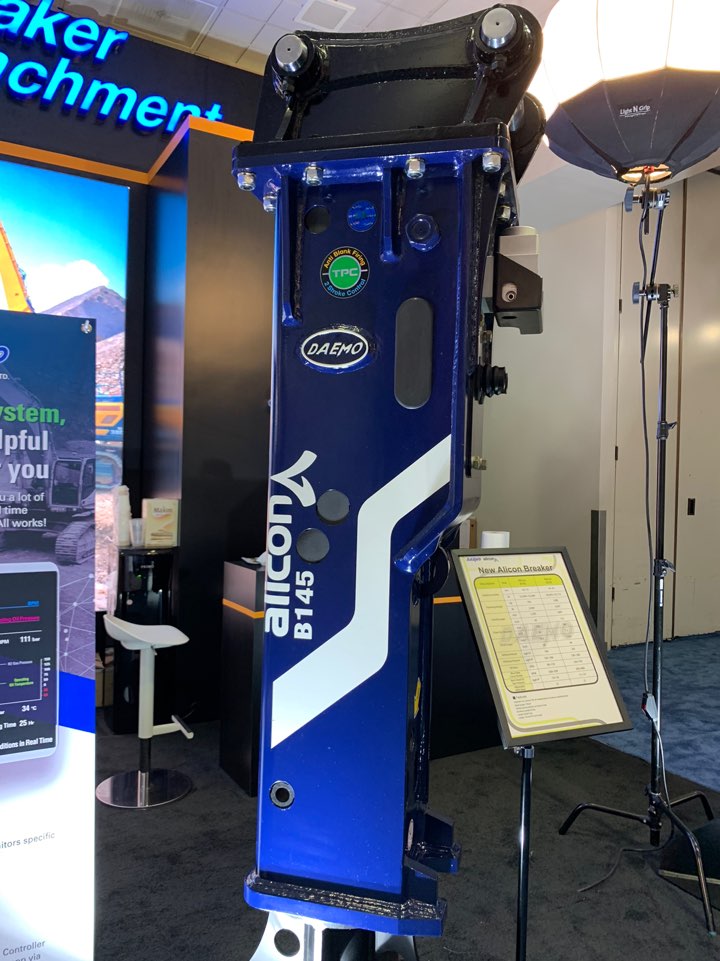

ALICON

B145

Weight
959kg
Suitable Excavator
10~15ton

Specifications

Metric
US/Imperial
주요 제원
Description Unit -
Control Valve Type - Outer control valve installed without accumulator - Outer control valve installed without accumulator
Suitable Excavator ton 10~15 lb 22,046~33,069
Weight [Top box type] kg 959 lb 2,114
Overall Length [Top box type] mm 2,263 in 89.1
Weight [Side type] kg 803 lb 1,770
Overall Length [Side type] mm 1,941 in 76.4
Weight [Split type] kg 926 lb 2,041
Overall Length [Split type] mm 2,295 in 90.4
Chisel Out Diameter mm 105 in 4.1
Working Length of chisel [Top box type] mm 975 in 38.4
Setting Pressure kgf/cm² 190 psi 2,702
Working Pressure kgf/cm² 120~160 psi 1,707~2,276
Oil Flow LPM 90~110 GPM 23.8~29.1
Blow Rate [Standard speed] BPM 350~550 BPM 350~550
Blow Rate [High speed] BPM 500~750 BPM 500~750
Back Head N2 Gas Pressure kgf/cm² 13~16 psi 185~228

※ The specifications are subject to change without prior notice for quality improvement.
※ Weight includes mounting bracket to attach to excavator and may vary depending on mounting bracket configuration.

Application

Standard [●]    Option [○]
Application
Description -
Under water works​ ○
Auto greasing system hole​ ●
TPC (Total Power Control) system selector type​ ●
ABF (Anti Blank Firing) system​ ●
Auto greasing unit​ ○
Central grease supply unit​ ○
BPM adjuster​ ●
Internal relief valve​ -
TPC (Total Power Control) system remote control type​ -
Low noise housing bracket​ ○
