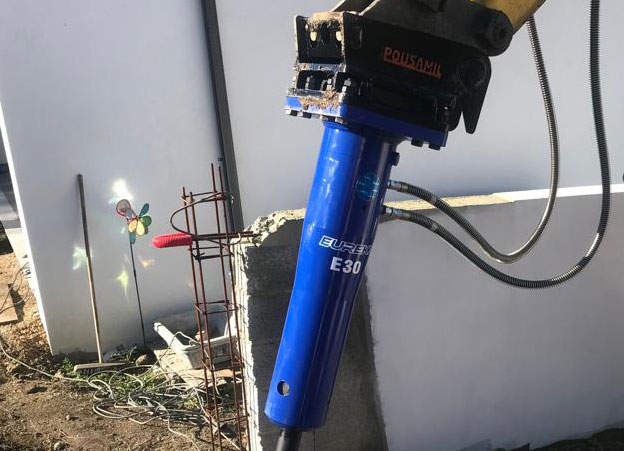

EUREKA
E30
- Weight
- 141kg
- Suitable Excavator
- 2.5~4.5ton
Specifications
Metric
US/Imperial
| Description | Unit | - | ||
|---|---|---|---|---|
| Suitable Excavator | ton | 2.5~4.5 | lb | 5,512~9,921 |
| Weight [Solid type] | kg | 141 | lb | 311 |
| Overall Length [Solid type] | mm | 1,198 | in | 47.2 |
| Weight [Side type] | kg | 125 | lb | 276 |
| Overall Length [Side type] | mm | 1,092 | in | 43.0 |
| Weight [Split type] | kg | 135 | lb | 298 |
| Overall Length [Split type] | mm | 1,282 | in | 50.5 |
| Chisel Out Diameter | mm | 53 | in | 2.1 |
| Working Length of chisel [Top box type] | mm | 550 | in | 21.7 |
| Setting Pressure | kgf/cm² | 160 | psi | 2,276 |
| Working Pressure | kgf/cm² | 90~120 | psi | 1,280~1,707 |
| Oil Flow | LPM | 25~50 | GPM | 6.6~13.2 |
| Blow Rate | BPM | 600~1,100 | BPM | 600~1,100 |
| Input Power | kW | 10 | hp | 13 |
| Back Head N2 Gas Pressure | kgf/cm² | 16 | psi | 228 |
※ The specifications are subject to change without prior notice for quality improvement.
※ Weight includes mounting bracket to attach to excavator and may vary depending on mounting bracket configuration.
