DRP ROTATING PULVERIZER
DRP435
- Weight
- 4,150kg
- Suitable Excavator
- 38~50ton
Specifications
Metric
US/Imperial
| Description | Unit | - | ||
|---|---|---|---|---|
| Weight | kg | 4,150 | lb | 9,149 |
| Overall Length | mm | 2,673 | in | 105.2 |
| Jaw Opening | mm | 1,181 | in | 46.5 |
| Jaw Depth | mm | 1,078 | in | 42.4 |
| Blade Length | mm | 340 | in | 13.4 |
| Upper Jaw Width | mm | in | ||
| Lower Jaw Width | mm | in | ||
| Crushing Force(Mid) | ton | 219 | sh.tn. | 245 |
| Crushing Force(Tip) | ton | 128 | sh.tn. | 143 |
| Min. Cycle Time (Open/Close) | sec | 3.0 / 2.8 | psi | 4,978 |
| Operating Pressure | kgf/cm² | 350 | GPM | 92.5~105.7 |
| Oil Flow Rate | LPM | 350~400 | sec | 3.0 / 2.8 |
| Excavator Class | ton | 38~50 | lb | 83,776~110,231 |
| Hydraulic Motor(Setting Pressure) | kgf/cm² | 120 | psi | 1,707 |
| Hydraulic Motor(Oil Flow Rate) | LPM | 15~20 | GPM | 4.0~5.3 |
| Hydraulic Motor(Revolving Speed) | RPM | 8~10 | RPM | 8~10 |
※ The specifications are subject to change without prior notice for quality improvement.
※ Weight includes mounting bracket to attach to excavator and may vary depending on mounting bracket configuration.

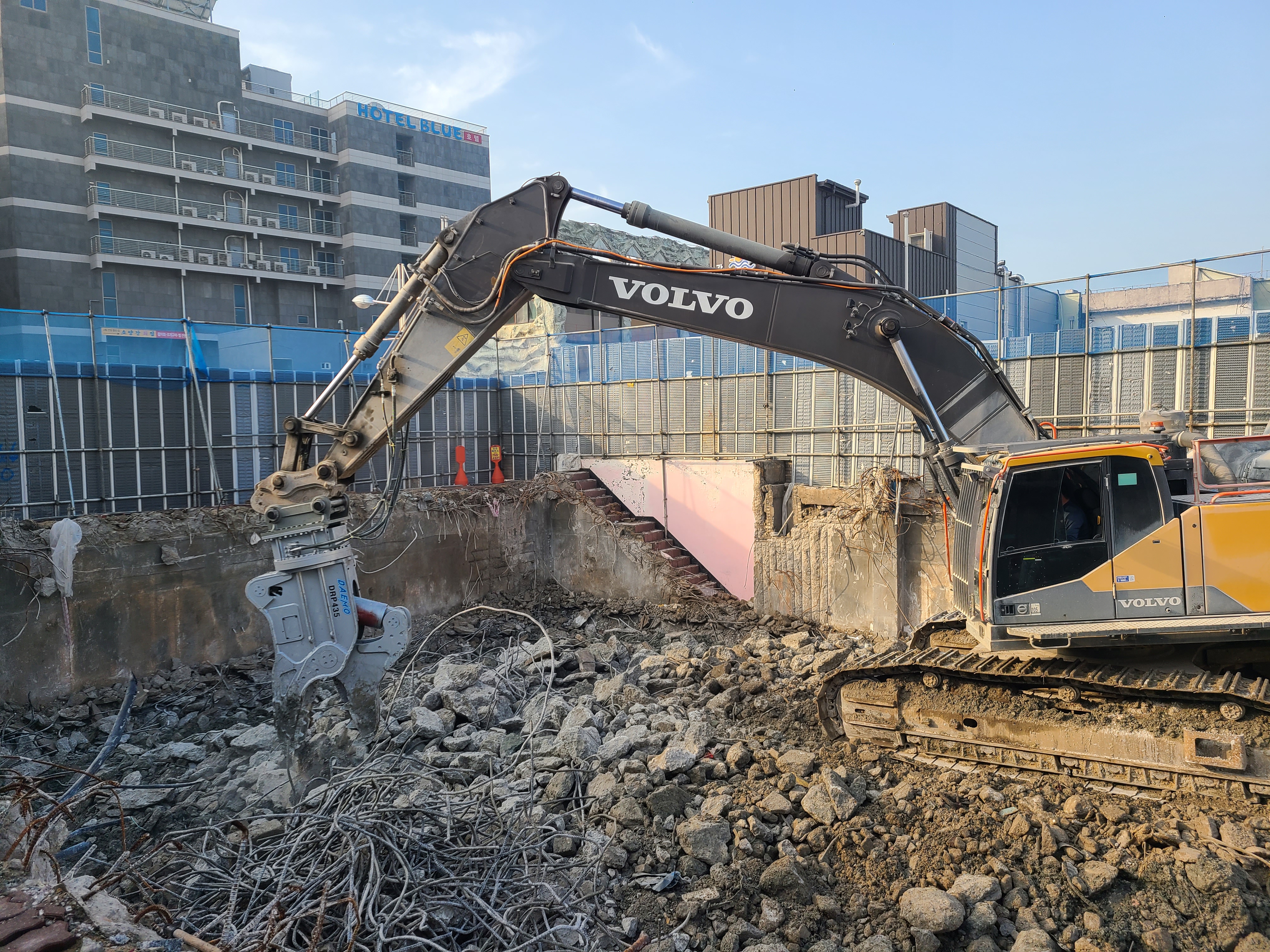

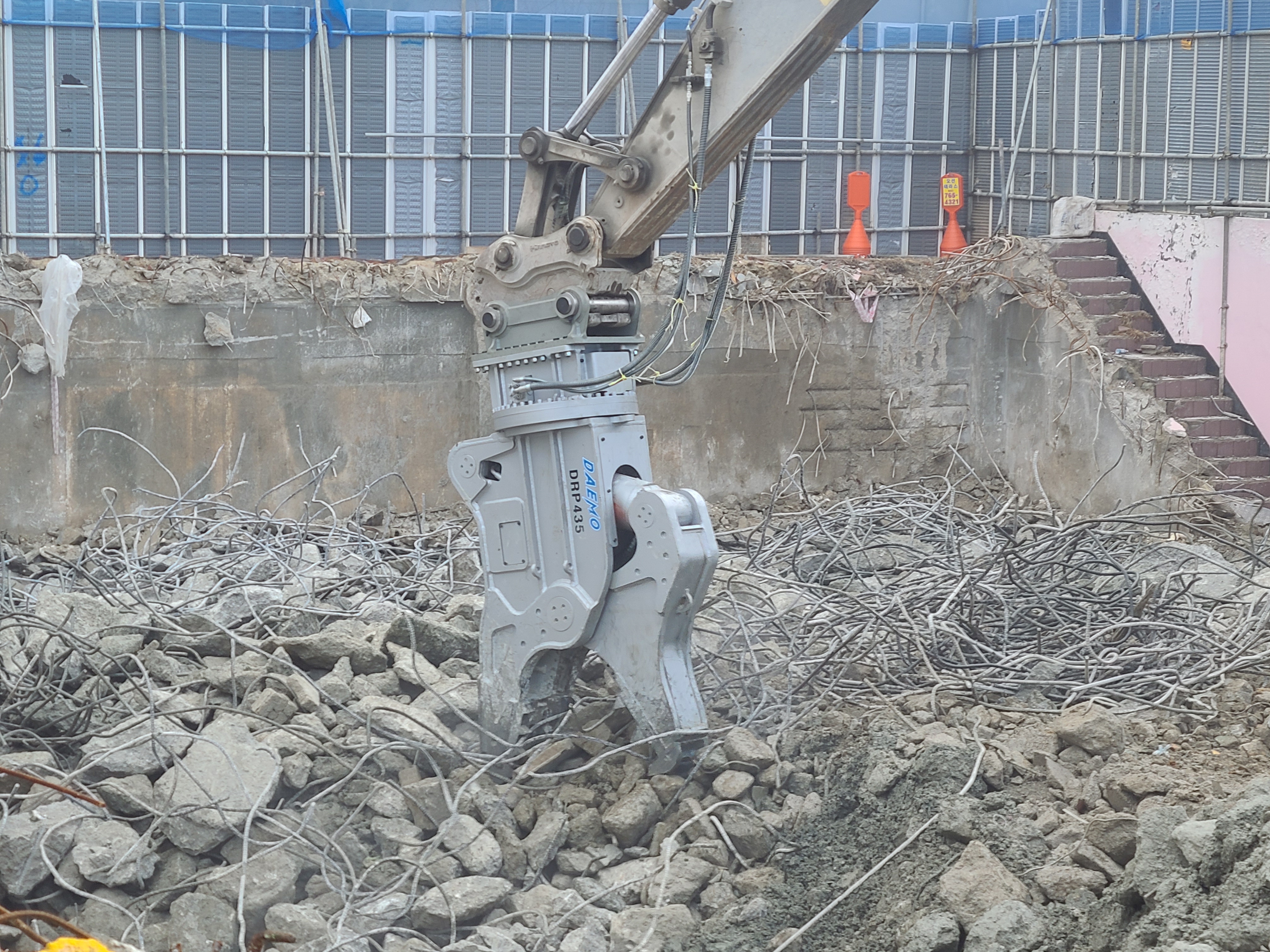

Pictures
